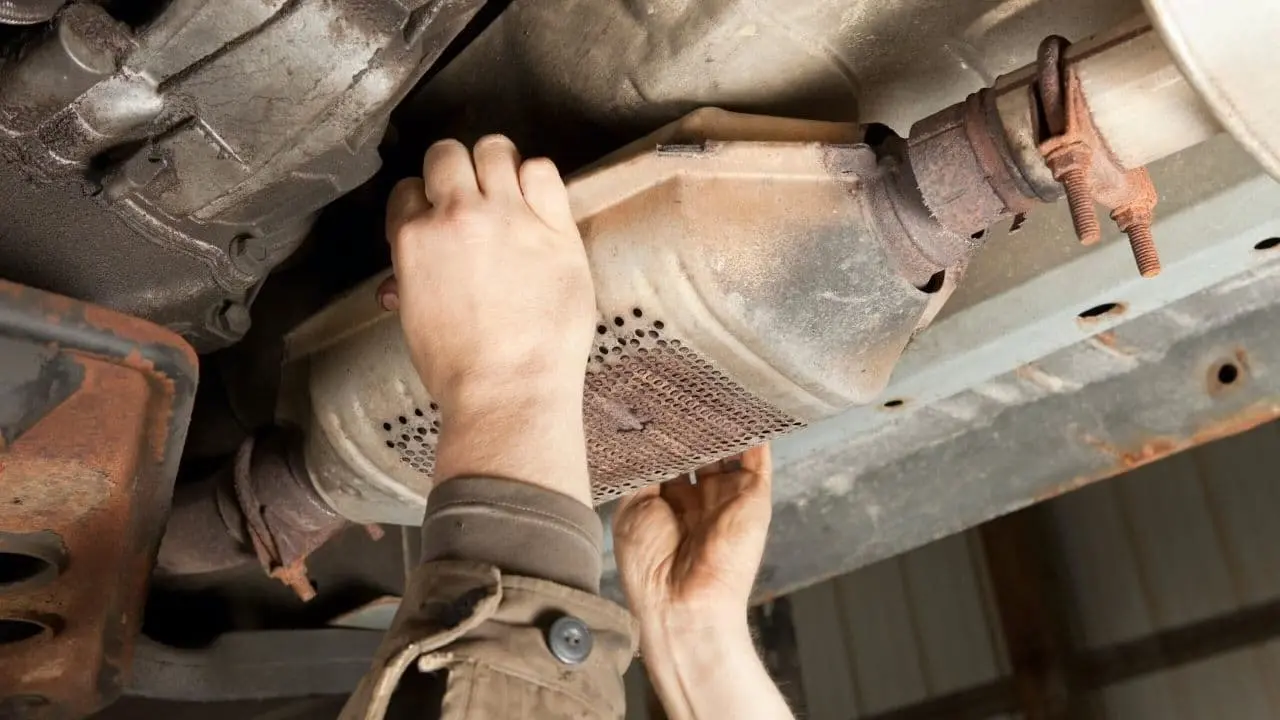

What Is a Catalytic Converter? Symptoms of Failure

A catalytic converter is an important component of a vehicle’s exhaust system. Its main purpose is to reduce harmful exhaust emissions by converting certain pollutants into less harmful gases before they are released into the atmosphere.

Catalytic converters are especially important on gasoline engines, where they help reduce carbon monoxide (CO), unburned hydrocarbons (HC), and nitrogen oxides (NOx).

Although a catalytic converter may look like a simple part of the exhaust system from the outside, it contains a sophisticated honeycomb structure coated with precious metals. When it begins to fail, it can affect not only emissions but also engine performance, fuel economy, and overall drivability.

How does a catalytic converter work?

Inside the catalytic converter is a honeycomb-shaped substrate made from ceramic or metal. This structure provides a very large surface area for exhaust gases to pass over.

The surface is coated with catalytic materials such as platinum, palladium, and rhodium. As hot exhaust gases pass through the converter, chemical reactions take place.

Carbon monoxide is converted into carbon dioxide, unburned hydrocarbons are oxidized, and nitrogen oxides are reduced into nitrogen and oxygen.

For these reactions to work efficiently, the engine must operate with the correct air-fuel mixture and the catalytic converter must reach its operating temperature.

Catalytic Converter and DPF Are Not the Same

Catalytic converters and diesel particulate filters (DPF) are sometimes confused with each other, but they perform different jobs.

A catalytic converter mainly reduces harmful chemical components in exhaust gases through chemical reactions. A DPF, on the other hand, is designed primarily to capture soot and particulate matter from diesel exhaust.

Some modern vehicles have catalytic converters and particulate filters positioned close together or integrated into a larger exhaust assembly. However, their functions and operating principles remain different.

Why Does a Catalytic Converter Fail?

A catalytic converter does not normally fail without a reason. In many cases, another engine or fuel-system problem causes the converter to become damaged.

One of the most common causes is repeated engine misfire. When fuel fails to burn inside the cylinder, unburned fuel can enter the exhaust system. It may then burn inside the catalytic converter, causing extremely high temperatures.

Other possible causes include:

• Rich air-fuel mixture

• Faulty fuel injectors

• Ignition coil or spark plug problems

• Oil entering the combustion chamber

• Coolant entering the combustion chamber

• Faulty oxygen sensors

• Exhaust leaks

• Excessive exhaust temperatures

• Physical impact or damage

• Long-term engine misfires

A catalytic converter that has been damaged by one of these problems may fail again quickly if the underlying cause is not repaired.

Symptoms of a Bad Catalytic Converter

The symptoms depend on the type of failure. A converter may simply lose its emission-control efficiency, or its internal honeycomb structure may become damaged and restrict exhaust flow.

These two situations can produce different symptoms.

Check Engine Light

One of the most common signs is the Check Engine Light.

When the ECU detects that catalytic converter efficiency is below the expected level, it may store a related diagnostic trouble code. P0420 is one of the most commonly associated codes.

However, a P0420 code does not automatically mean that the catalytic converter itself has failed.

A faulty oxygen sensor, exhaust leak, incorrect fuel mixture, or another engine problem can also cause the ECU to detect apparently poor catalytic converter efficiency.

Loss of Engine Power

A damaged or restricted catalytic converter can cause noticeable power loss.

This is particularly common when the converter becomes partially or severely blocked. The engine may run relatively normally at low speed but struggle when the driver demands more power.

The vehicle may feel unusually weak when accelerating, climbing hills, or carrying a heavy load.

Power Loss at High RPM

A partially blocked catalytic converter can sometimes be difficult to notice during normal driving.

At low engine speeds, the amount of exhaust gas produced is relatively limited. As engine speed and load increase, however, the engine needs to expel a much larger volume of exhaust gases.

If the converter is restricted, exhaust backpressure can rise significantly. The result may be severe power loss at higher RPM.

The vehicle may accelerate normally at low speeds but become increasingly sluggish as engine speed rises.

Poor Throttle Response

A severely restricted catalytic converter can make the engine feel as though it is being suffocated.

The driver may press the accelerator further, but the engine may respond very slowly. The vehicle may struggle to gain speed even though the throttle is open.

This symptom is not exclusive to catalytic converter problems. Fuel pressure issues, ignition faults, throttle problems, turbocharger problems, and intake restrictions can produce similar symptoms.

Increased Fuel Consumption

A bad catalytic converter does not necessarily cause high fuel consumption by itself.

However, problems associated with catalytic converter failure can increase fuel consumption. For example, a rich-running engine can consume more fuel while simultaneously exposing the catalytic converter to excessive heat and unburned fuel.

For this reason, increased fuel consumption should be considered as part of the diagnosis rather than treated as proof of catalytic converter failure.

Unusual Exhaust Smell

A malfunctioning catalytic converter may change the smell of the exhaust gases.

Some vehicles can produce a strong sulfur-like or unpleasant smell, particularly when the engine is running under heavy load.

However, unusual exhaust odor can also be caused by poor fuel quality, a rich mixture, or incomplete combustion.

Rattling Noise from the Exhaust

The ceramic honeycomb inside a catalytic converter can crack or break apart.

When this happens, loose pieces may produce a rattling or metallic noise. The noise may be more noticeable when the exhaust system is cold or when the vehicle is started and stopped.

A rattling catalytic converter should be inspected because broken internal material can sometimes move through the converter and create additional restrictions.

Difficult Starting or Stalling

Severe catalytic converter blockage can interfere with the engine’s ability to expel exhaust gases.

As exhaust backpressure becomes excessive, engine operation can become unstable. In extreme cases, the engine may become difficult to start, run poorly at idle, or stall under load.

At this point, the problem is no longer simply an emissions issue. The restriction can significantly affect normal engine operation.

What Happens When a Catalytic Converter Becomes Clogged?

A clogged catalytic converter creates excessive exhaust backpressure.

Under normal conditions, exhaust gases leave the cylinders, pass through the exhaust manifold and catalytic converter, and continue through the exhaust system.

When the honeycomb channels become restricted by melted material, carbon deposits, or broken internal components, exhaust gases cannot pass through the converter efficiently.

The increasing backpressure can lead to:

• Poor acceleration

• High-RPM power loss

• Poor hill-climbing performance

• Hesitation under load

• Engine misfire

• Increased exhaust temperature

• Poor fuel economy

• Difficulty maintaining engine speed

• Stalling in severe cases

One important characteristic of a restricted converter is that the vehicle may appear relatively normal during light driving but become much worse when the engine is under heavy load.

How Can a Clogged Catalytic Converter Be Diagnosed?

A catalytic converter should not be diagnosed solely from symptoms.

One of the useful diagnostic methods is measuring exhaust backpressure. Depending on the vehicle and diagnostic procedure, technicians can also perform vacuum tests and other exhaust-flow tests.

Live data from the engine ECU can also provide valuable information.

Oxygen sensor readings, fuel trims, engine load, RPM, ignition performance, and other parameters should be evaluated together.

A proper diagnosis may also include checking for exhaust leaks and comparing engine behavior under different operating conditions.

Replacing the catalytic converter simply because the vehicle has poor acceleration is not a reliable diagnostic method.

Why Does a Catalytic Converter Melt?

A catalytic converter can reach very high temperatures during normal operation, but excessive temperatures can damage its internal structure.

Repeated engine misfires are particularly dangerous.

If a cylinder fails to burn the injected fuel properly, unburned fuel can enter the exhaust system. When this fuel reaches the hot catalytic converter, it can ignite inside the converter.

This can cause the temperature to rise far beyond normal operating conditions.

Over time, the ceramic substrate may melt, crack, or collapse. Once the honeycomb structure begins to melt and block the exhaust passages, exhaust backpressure can increase dramatically.

This is why replacing a melted catalytic converter without fixing the original misfire problem is likely to result in another failed converter.

Can a Bad Catalytic Converter Damage the Engine?

A severely restricted catalytic converter can negatively affect engine operation.

High exhaust backpressure can reduce performance and interfere with the engine’s ability to expel combustion gases.

However, the bigger concern is often the problem that caused the catalytic converter to fail in the first place.

For example, if a faulty ignition coil causes continuous misfires and the catalytic converter is replaced without repairing the ignition problem, the new converter may be damaged again.

The same principle applies to rich fuel mixtures, leaking injectors, oil consumption, and coolant entering the combustion chamber.

Can a Catalytic Converter Be Cleaned?

There are various catalytic converter cleaning products and fuel additives on the market.

These products may have limited usefulness in certain situations, but they should not be considered a repair for a converter that is physically damaged.

If the honeycomb has melted, collapsed, or broken apart, a chemical cleaner cannot restore the original structure.

Light contamination and physical destruction are completely different problems. Proper diagnosis should be performed before attempting to clean or replace the component.

What Should Be Checked Before Replacing a Catalytic Converter?

Replacing a catalytic converter should not be the first step when the cause of the failure is unknown.

Before installing a new converter, it is important to check the systems that could have caused the original failure.

Important areas include:

• Spark plugs

• Ignition coils

• Fuel injectors

• Fuel pressure

• Air-fuel mixture

• Oxygen sensors

• Exhaust leaks

• Fuel trims

• Engine oil consumption

• Coolant consumption

• Engine misfires

• Intake and vacuum leaks

The replacement converter must also be appropriate for the engine, emissions system, and vehicle configuration.

Installing an unsuitable or low-quality catalytic converter can result in poor emissions performance and recurring fault codes.

Catalytic Converter Problems Can Be Confused with Oxygen Sensor Problems

Modern vehicles often have oxygen sensors positioned before and after the catalytic converter.

The ECU compares the signals from these sensors to determine whether the catalytic converter is working efficiently.

Because of this, a faulty oxygen sensor can sometimes produce symptoms or diagnostic codes that appear to point toward the catalytic converter.

An exhaust leak can create a similar problem by allowing outside air to enter the exhaust system and alter oxygen sensor readings.

Therefore, a P0420 code should not automatically be interpreted as a failed catalytic converter.

The oxygen sensors, wiring, exhaust system, fuel trims, and general engine operation should all be checked before replacing an expensive component.

How Long Does a Catalytic Converter Last?

There is no universal mileage or time limit that applies to every catalytic converter.

Its lifespan depends heavily on engine condition, fuel-system performance, driving conditions, and maintenance.

A properly running engine with a correct air-fuel mixture and healthy ignition system can allow a catalytic converter to operate for a very long time.

On the other hand, repeated misfires, excessive oil consumption, rich mixtures, and coolant entering the combustion chamber can significantly shorten its life.

In this sense, the catalytic converter is closely connected to the overall health of the engine.

A Catalytic Converter Should Be Diagnosed Before It Is Replaced

Catalytic converter failure can produce several recognizable symptoms, including loss of power, poor acceleration, high fuel consumption, unusual exhaust odor, rattling noises, and a Check Engine Light.

However, none of these symptoms alone proves that the catalytic converter has failed.

A proper diagnosis should determine whether the problem is poor catalytic efficiency, physical damage, or exhaust restriction. Oxygen sensor data, fuel trims, exhaust backpressure, engine misfire information, and exhaust leaks may all need to be considered.

Most importantly, the reason for the catalytic converter failure should be identified.

If a misfire, rich mixture, faulty injector, oil consumption problem, or another engine fault is left unresolved, installing a new catalytic converter may only provide a temporary solution. The new component can suffer the same damage again.
